10-Port Gigabit PoE Smart Managed Switch
- 8 x 10/100/1000BASE-T PoE ports
- 2 x SFP ports
- Supports IEEE 802.3at PoE
- 130W PoE Power Budget
- Innovative D-Link Green energy saving features
- Complete web interface for comprehensive switch management
Simple. Easy. Smart.
Web UI
Easy to use web interface to
access management features
Power over Ethernet
Convenient installation of PoE devices
in remote areas
QoS
Prioritization data traffic ensures smooth transmission
Advanced Security Features
The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation(static). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.
Simplify Network Management

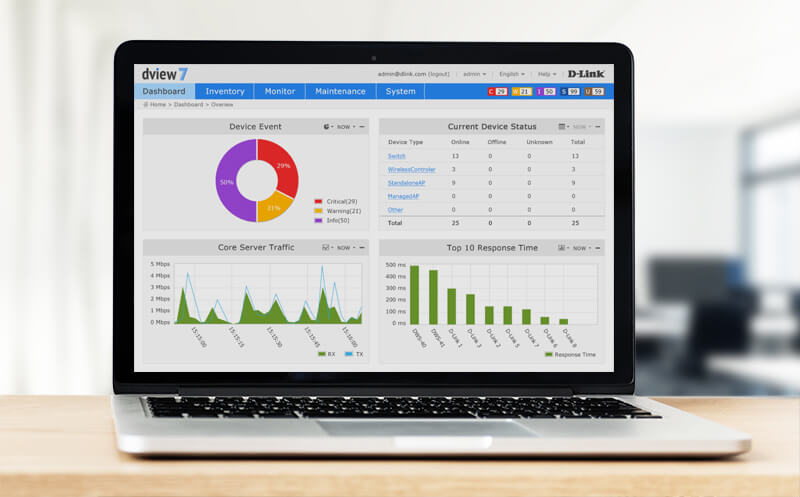

D-Link’s free Network Assistant (DNA) displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.
Simplify Network Management
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).
| Auto MDI/MDIX | • Yes | |
| 10/100/1000BASE-T PoE ports (802.3af/at) | • 8 | |
| 802.3bt 90W Support | • No | |
| 10/100/1000BASE-T ports (Including PoE ports) | • 8 | |
| Gigabit SFP ports | • 2 | |
| Port-based Bandwidth Control | • Yes | |
| Class of Service (CoS) | • Yes | |
| 802.3x Flow Control | • Yes | |
| Store-and-Forwarding | • Yes | |
| Comply with RoHS | • Yes | |
| Energy Efficiency Ethernet (EEE) | • Yes | |
| FAN | • Smart Fan | |
| Jumbo Frame | • 10,000 bytes | |
| Loopback Detection (LBD) | • Yes | |
| IGMP Snooping | • Yes | |
| 802.1AX Link Aggregation | • Yes | |
| 802.3ad Link Aggregation | • Yes | |
| SNMP | • Yes | |
| Web-based GUI | • Yes | |
| D-Link Discover Protocol (DDP) | • Yes | |
| D-Link Network Assistant | • Yes | |
| Port Mirroring | • Yes | |
| Cable Diagnostics | • N/A | |
| Switch Capacity | • 20 Gbps | |
| Max. Packet Forwarding Rate | • 14.88 Mpps | |
| Maximum Power Consumption (PoE On) | • 165W | |
| Maximum PoE Budget | • 130W (30W max. per PoE port) | |
| Rate Limiting | • Yes | |
| Power Input | • AC: 100-240V | |
| Queue Handling | • Yes | |
| Strict Priority Queue (SPQ) | • Yes | |
| Weighted Round Robin (WRR) | • Yes | |
| SSL | • Yes | |
| Broadcast/Multicast/Unicast Storm Control | • Yes | |
| Traffic Segmentation | • Yes | |
| D-Link Safeguard Engine | • Yes | |
| DoS Attack Prevention | • Yes | |
| 802.1D Spanning Tree (STP) | • Yes | |
| 802.1w Rapid Spanning Tree (RSTP) | • Yes | |
| Dimension | • 280 x 180 x 44mm | |
| Weight | • 1.5 kg | |
| Operation Temperature | • -5-50°C | |
| 802.1Q VLAN | • Yes | |
| Port-based VLAN | • Yes | |
| Voice VLAN | • Yes | |
| Auto Surveillance VLAN | • Yes | |
| Asymmetric VLAN | • Yes | |
| EMI Certification | • FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI | |
| Safety Certification | • cUL, UL, LVD, CB, BSMI |
Lifetime warranty
