| Specification | Details |
|---|---|
| Overview | |
| Interface | PCIe® 5.0 x4, NVMe™ 2.0 |
| Sequential Read | Up to 14,700MB/s |
| Sequential Write | Up to 13,300MB/s |
| Warranty | 5-Year Limited Warranty or 600TBW Limited Warranty |
| Application | Client PCs, Game Consoles |
| Weight | Max. 9.0g |
| Dimensions | Max. 80.15 × 22.15 × 2.38 mm |
| General Feature | |
| Application | Client PCs, Game Consoles |
| Rated Capacity | 1,000GB |
| Capacity Note | 1GB = 1 billion bytes by IDEMA. Actual usable capacity may be less due to formatting, partitioning, operating system, applications or otherwise. |
| Form Factor | M.2 2280 |
| Interface | PCIe® 5.0 x4, NVMe™ 2.0 |
| Dimensions | Max. 80.15 × 22.15 × 2.38 mm |
| Weight | Max. 9.0g |
| Storage Memory | Samsung V-NAND TLC |
| Controller | Samsung in-house Controller |
| Cache Memory | Samsung 1GB Low Power DDR4X SDRAM |
| Special Feature | |
| TRIM Support | Supported |
| S.M.A.R.T Support | Supported |
| Garbage Collection | Auto Garbage Collection Algorithm |
| Encryption Support | AES 256-bit Encryption, TCG/Opal, IEEE1667 encrypted drive |
| WWN Support | Not supported |
| Device Sleep Mode Support | Yes |
| Performance | |
| Sequential Read | Up to 14,700MB/s |
| Sequential Write | Up to 13,300MB/s |
| Random Read | Up to 1,850,000 IOPS |
| Random Write | Up to 2,600,000 IOPS |
| Performance Note | Performance may vary based on system hardware and configuration. |
| Environment | |
| Average Power Consumption | Read: 7.6W; Write: 7.2W |
| Idle Power Consumption | Typical 4mW |
| Device Sleep Power Consumption | Typical 3.3mW |
| Power Consumption Note | Actual power consumption may vary depending on system hardware and configuration. |
| Allowable Voltage | 3.3V ± 5% |
| Reliability | 1.5 million hours MTBF |
| Operating Temperature | 0°C to 70°C |
| Shock Resistance | 1,500G, 0.5ms half sine |
| Accessories | |
| Installation Kit | Not available |
| Software | |
| Management Software | Samsung Magician Software for SSD management |
| Warranty | |
| Warranty | 5-Year Limited Warranty or 600TBW Limited Warranty |
Features

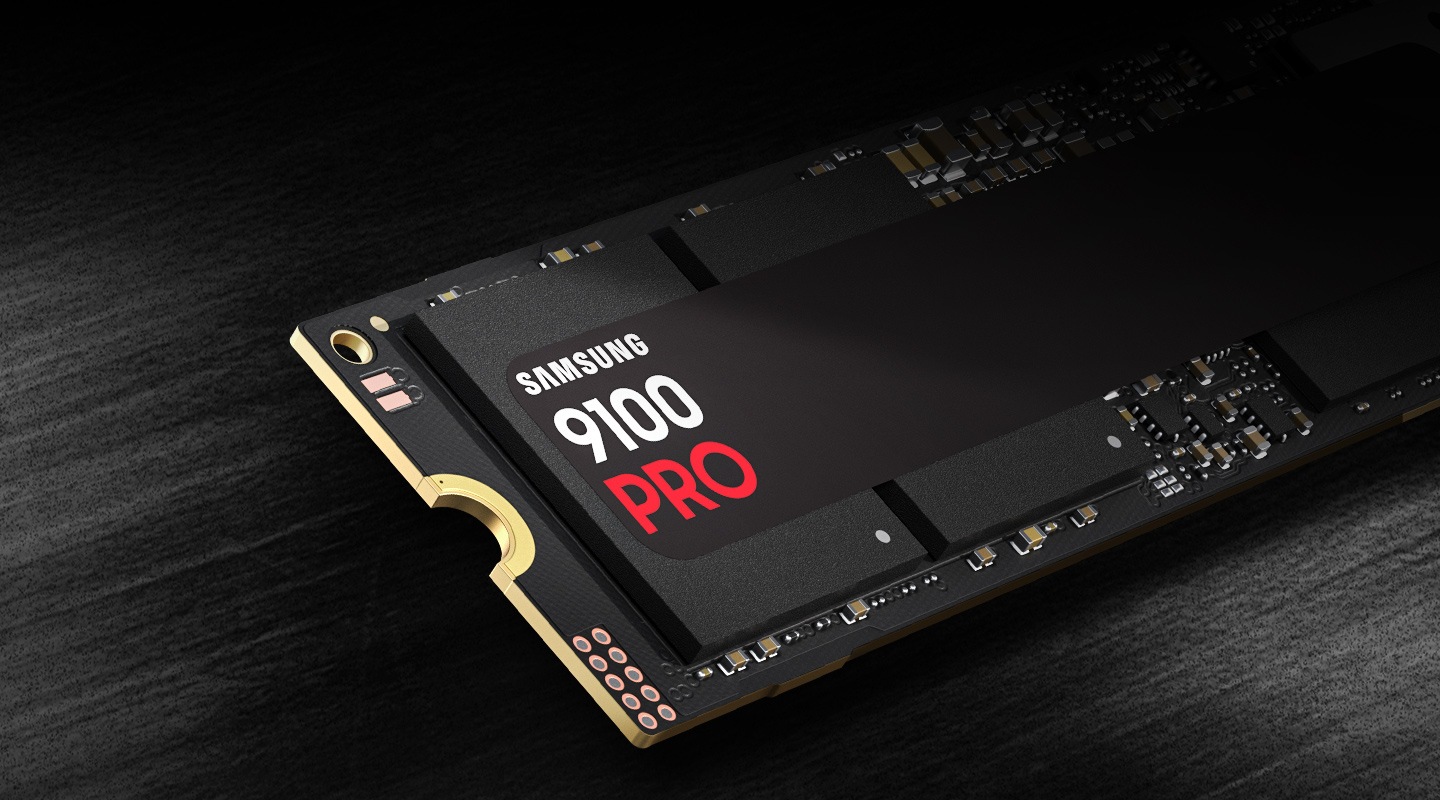

Performance ready for a new era
Top 3 features1
PCIe® 5.0 Performance
Max 14,800/13,400 MB/s sequential speeds, two times faster than 990 PRO.
Expanded Experience
Supermassive capacity with exceptional compatibility.
Breakthrough PCIe® 5.0 performance
Push PCIe® 5.0 performance to the max. 9100 PRO achieves lightning-fast sequential read/write speeds up to 14,800/13,400 MB/s, two times faster than 990 PRO. Leave Gen4 limits behind with random read/write speeds up to 2,200K/2,600K IOPS, only possible by Gen5.2
Every task, powerfully parallel
Speed past productivity limits. Exhilarating random read/write speeds enable ultra-fast parallel processing for countless fragmented data at up to 2,200K/2,600K IOPS. Experience superior output and instant loads for huge games, high-performance tasks, and even AI applications.
Create with AI in an instant
Intelligence redefines performance. Defy your limits in work and play with an on-board AI PC and AI content generation, fuelled by 9100 PRO’s exhilarating random read/write speeds up to 2,200K/2,600K IOPS. Swift loads, smooth gameplay, seamless performance.3
Exceptional everywhere
Elevate your competitive edge. Breeze through video editing, 3D art, and even long streaming sessions with the latest PCIe® 5.0 interfaces. Experience cutting-edge performance anytime, anywhere, on any device, and choose the storage you need with expansive capacity up to 8TB.4

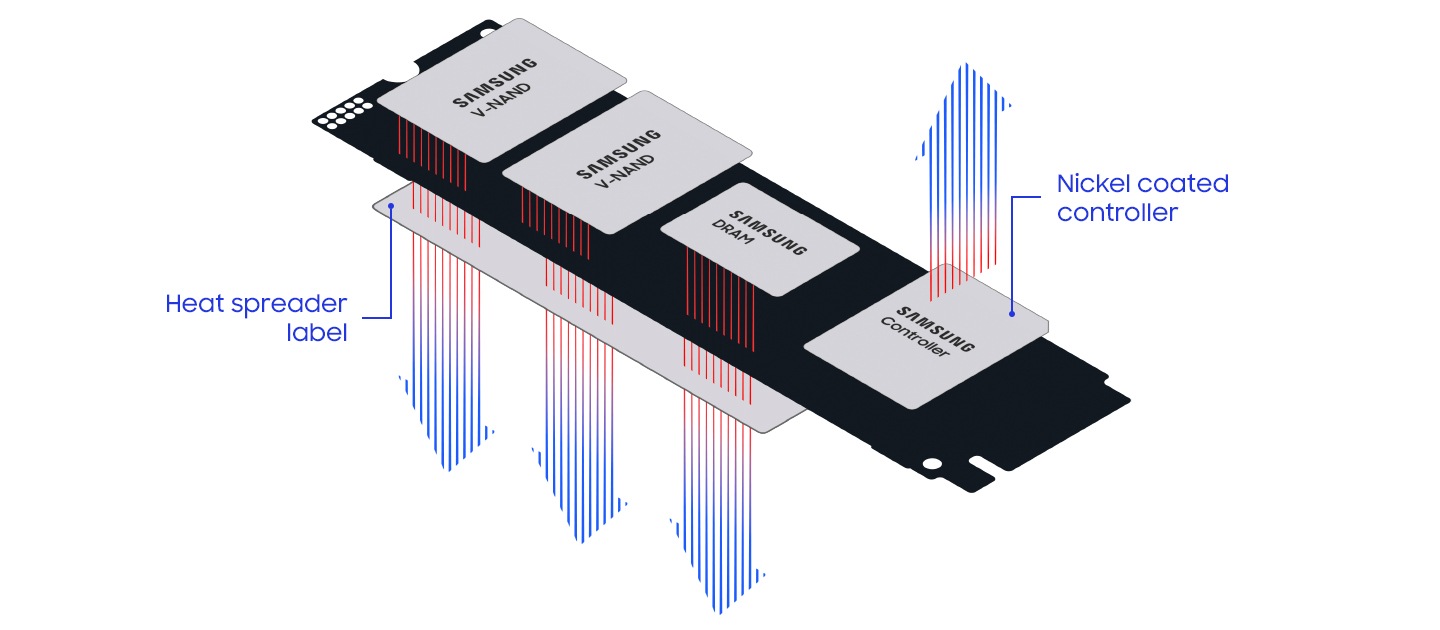

Extraordinary thermal efficiency
Peak performance, uninterrupted. The advanced 5nm controller power architecture enhances power efficiency up to 49% over 990 PRO. Exceptional thermal control ensures nothing disrupts your flow, so you can keep the most demanding programs running with the max possible power of PCIe® 5.05

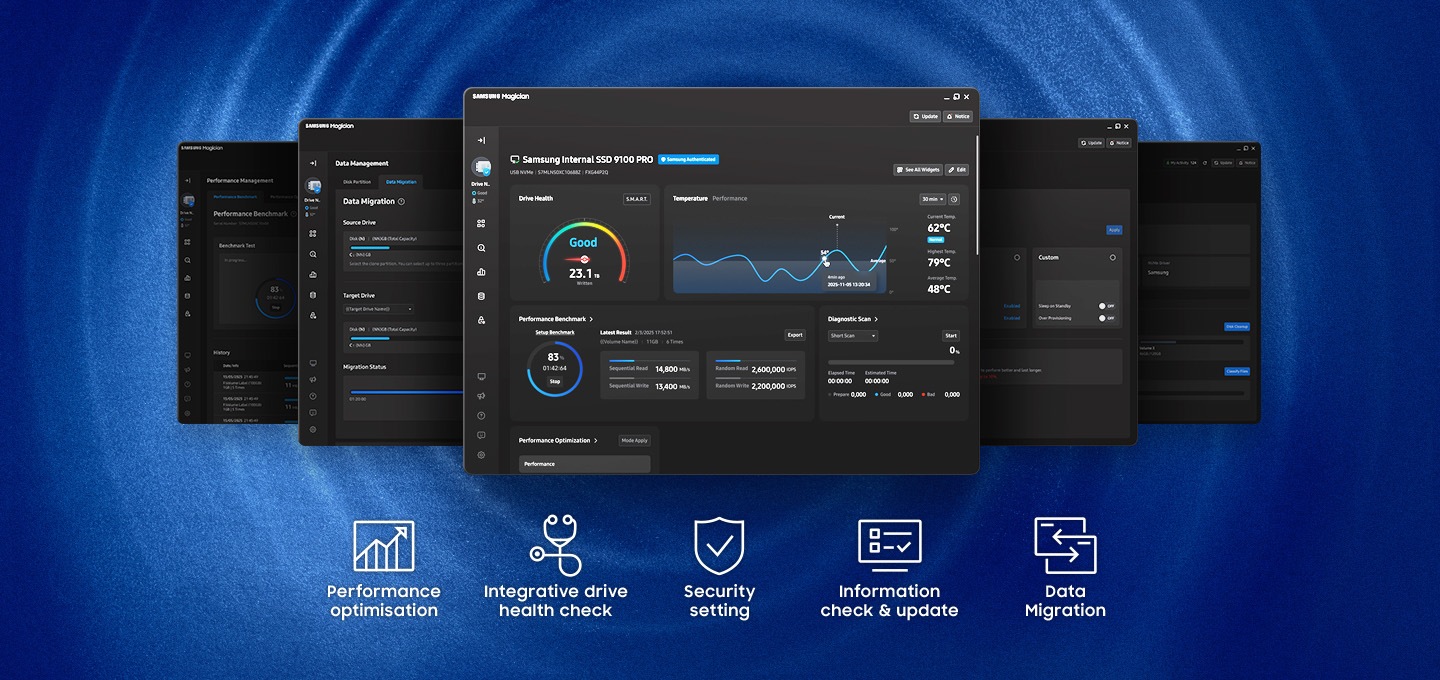

Samsung Magician software
Run your SSD your way with Samsung Magician software—a suite of simple tools to maintain high SSD performance. Transfer data quickly and safely, track drive health, and get the latest firmware updates6
Choose the sure thing
We call them files and folders — but they’re really the moments you can’t lose, from the plays you cherish to the work you’ve poured yourself into.
When you've got everything to lose, choose the sure thing - trusted performance, solid protection, and the peace of mind that stays with every moment. Choose Samsung SSD.
