| Specification | Details |
|---|---|
| Overview | |
| Interface | SATA 6 Gb/s, compatible with SATA 3 Gb/s and SATA 1.5 Gb/s |
| Sequential Read | Up to 560MB/s |
| Sequential Write | Up to 530MB/s |
| Warranty | 5 Years Limited Warranty or 300 TBW Limited Warranty |
| Application | Client PCs |
| Weight | Approx. 45.0g |
| Dimensions | 100 × 69.85 × 6.8 mm |
| General Feature | |
| Application | Client PCs |
| Rated Capacity | 500GB |
| Capacity Note | 1GB = 1 billion bytes by IDEMA. Actual usable capacity may be less due to formatting, partitioning, operating system, applications or otherwise. |
| Form Factor | 2.5 inch |
| Interface | SATA 6 Gb/s, compatible with SATA 3 Gb/s and SATA 1.5 Gb/s |
| Dimensions | 100 × 69.85 × 6.8 mm |
| Weight | Approx. 45.0g |
| Storage Memory | Samsung V-NAND 3bit MLC |
| Controller | Samsung MKX Controller |
| Cache Memory | Samsung 512MB Low Power DDR4 SDRAM |
| Special Feature | |
| TRIM Support | Supported |
| S.M.A.R.T Support | Supported |
| Garbage Collection | Auto Garbage Collection Algorithm |
| Encryption Support | AES 256-bit Encryption, TCG/Opal, IEEE1667 encrypted drive |
| WWN Support | World Wide Name supported |
| Device Sleep Mode Support | Yes |
| Performance | |
| Sequential Read | Up to 560MB/s |
| Sequential Write | Up to 530MB/s |
| Random Read, 4KB QD32 | Up to 98,000 IOPS |
| Random Write, 4KB QD32 | Up to 88,000 IOPS |
| Random Read, 4KB QD1 | Up to 13,000 IOPS |
| Random Write, 4KB QD1 | Up to 36,000 IOPS |
| Performance Note | Performance may vary based on system hardware and configuration. Write performance is measured with Intelligent TurboWrite technology activated. |
| Environment | |
| Average Power Consumption | Average: 2.2W; Maximum: 3.5W, burst mode |
| Idle Power Consumption | Max. 30mW |
| Power Consumption Note | Actual power consumption may vary depending on system hardware and configuration. |
| Allowable Voltage | 5V ± 5% |
| Reliability | 1.5 million hours MTBF |
| Operating Temperature | 0°C to 70°C |
| Shock Resistance | 1,500G, 0.5ms half sine |
| Accessories | |
| Installation Kit | Not available |
| Software | |
| Management Software | Samsung Magician Software for SSD management, Data Migration Software for SSD upgrade |
| Warranty | |
| Warranty | 5 Years Limited Warranty or 300 TBW Limited Warranty |
Features

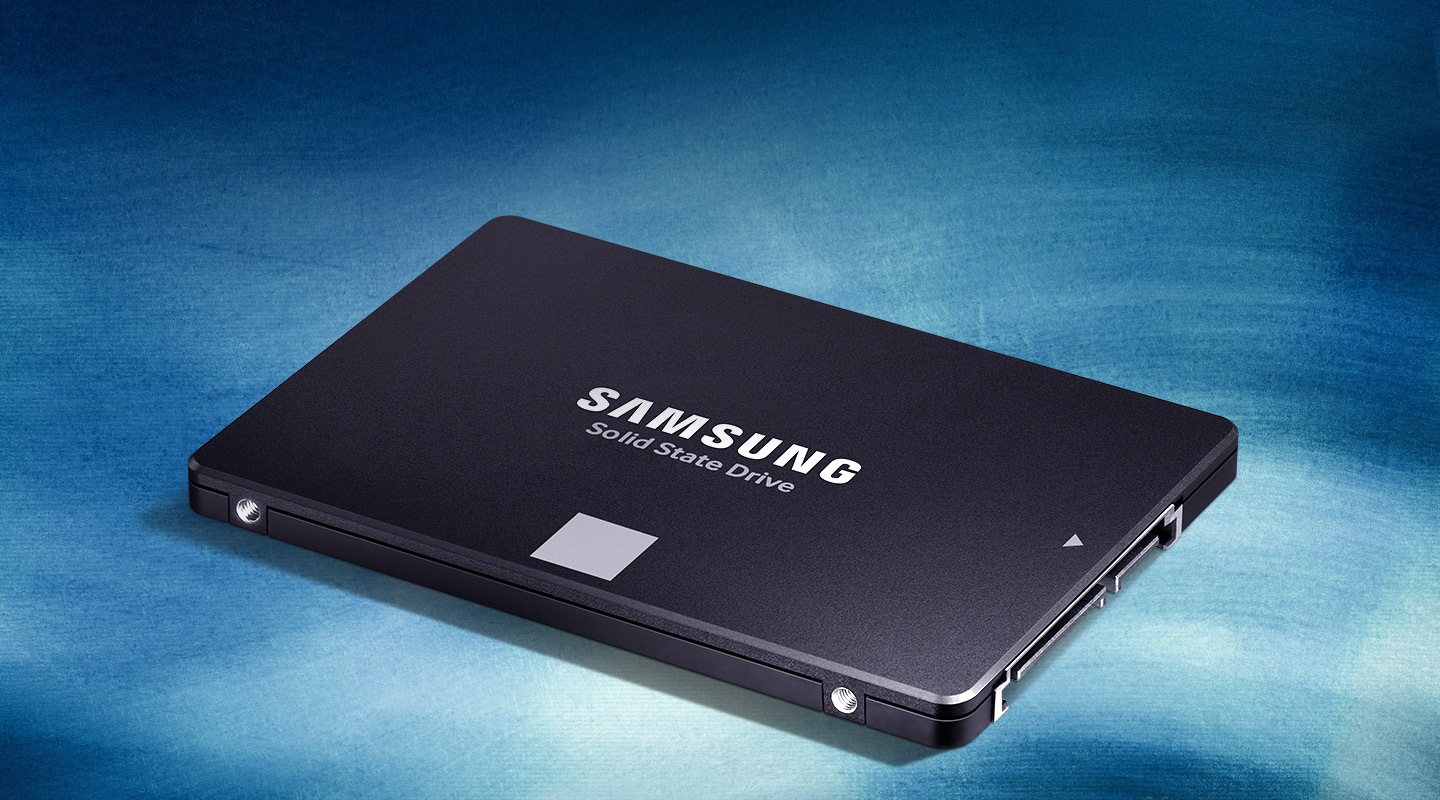

The definitive SSD for every need
The world’s favourite SSD
The latest model of the world’s best-selling SSD series has finally arrived. The 870 EVO inherits the legacy of Samsung’s pioneering SSD technology, boasting upgraded performance, reliability, and compatibility to suit the needs of anyone from content creators, IT professionals, to everyday users.1
Excellence in performance
The 870 EVO achieves the maximum SATA interface limit of 560/530 MB/s sequential speeds. Everyday users can now enjoy professional-level SSD performance. Intelligent TurboWrite accelerates write speeds and maintains long-term high performance with a larger variable buffer.2
Go further
with up to 8TB
With up to 8TB of capacity, you get the space you need—whether it’s for games, large media files, or demanding projects. Keep everything in one place and stay ready for whatever you create next.

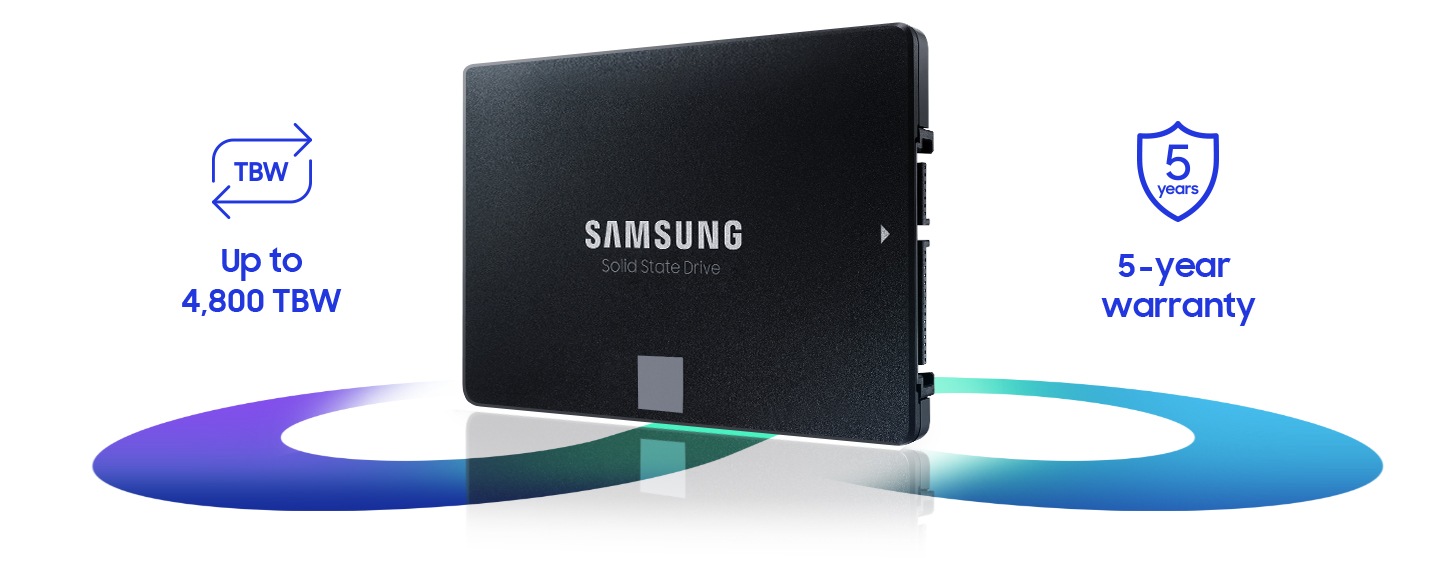

Industry-defining reliability
Providing up to 4,800 TBW under a 5- year limited warranty, the 870 EVO meets the industry’s leading standards of reliability. It withstands tasks from everyday computing to 4K/8K video processing and comes equipped with a Samsung in-house controller that ensures a stable host experience.3

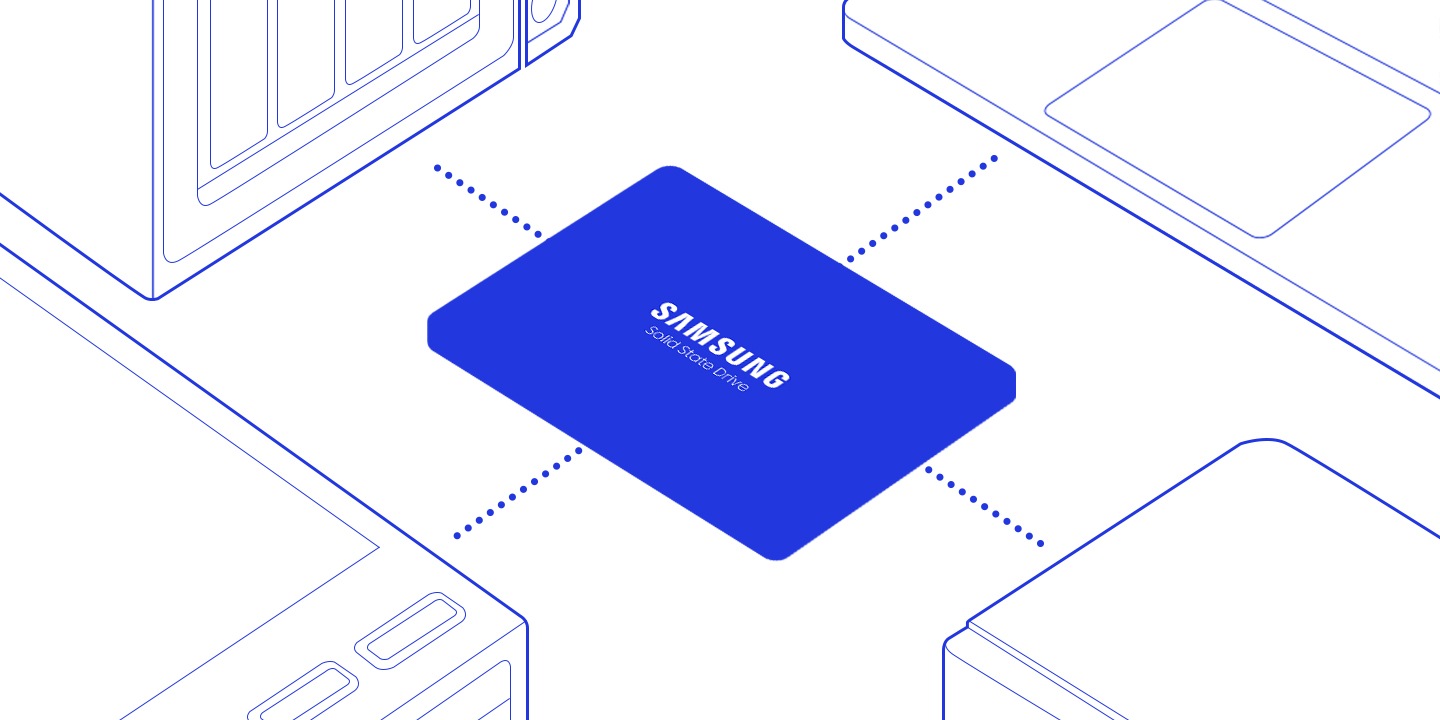

More compatible than ever
The 870 EVO passed compatibility tests with major host systems and applications, including chipsets, motherboards, NAS, and video recording devices. As the latest entry in the globally best-selling EVO series, the 870 EVO‘s proven versatility is compatible with systems and tasks of any user.4

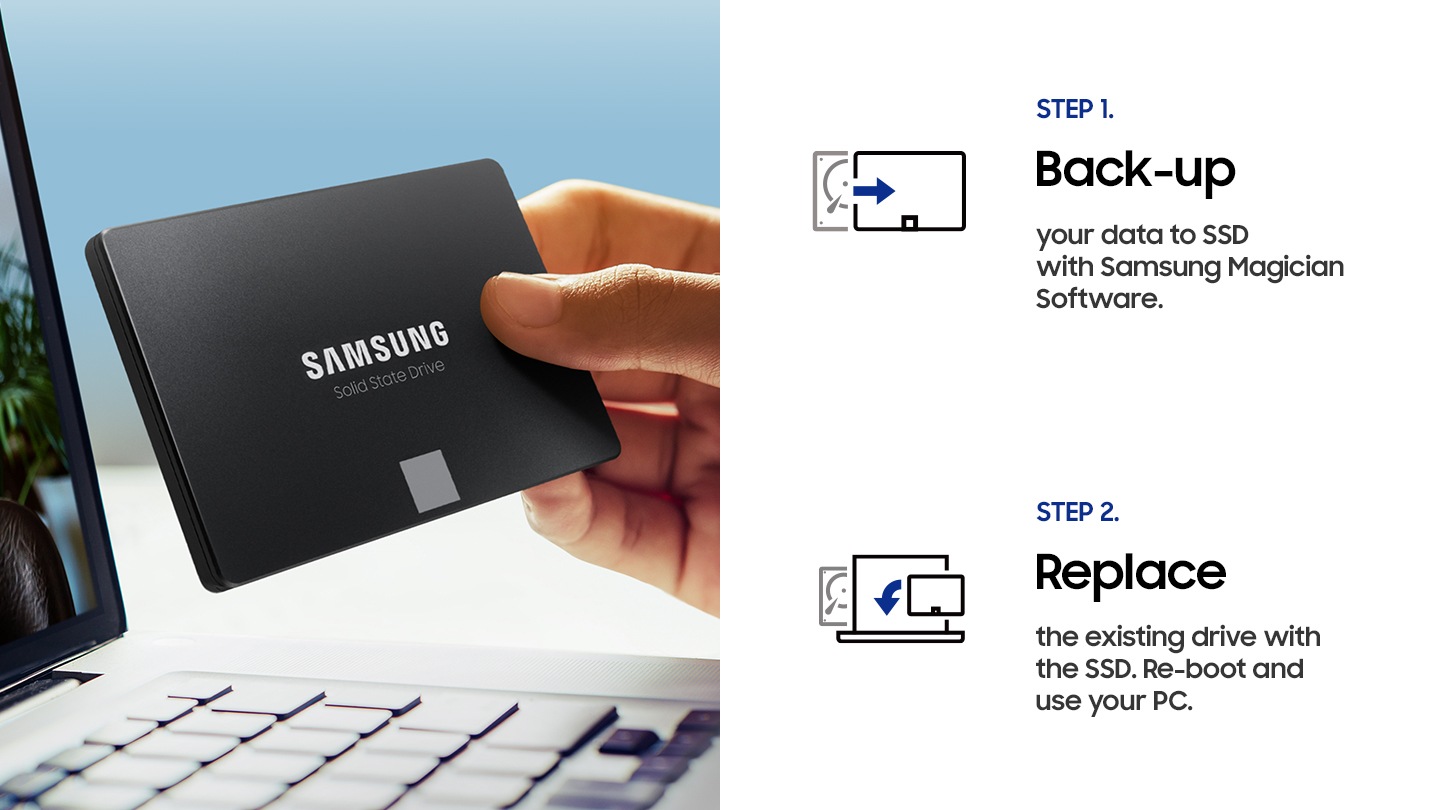

Upgrade with ease
Upgrading to the 870 EVO is made easy for anyone with a desktop PC or laptop that supports a standard 2.5-inch SATA form factor. Enjoying this masterpiece SSD is as convenient as plugging in the 870 EVO into a SATA slot, and letting the renewed migration software take care of the rest.

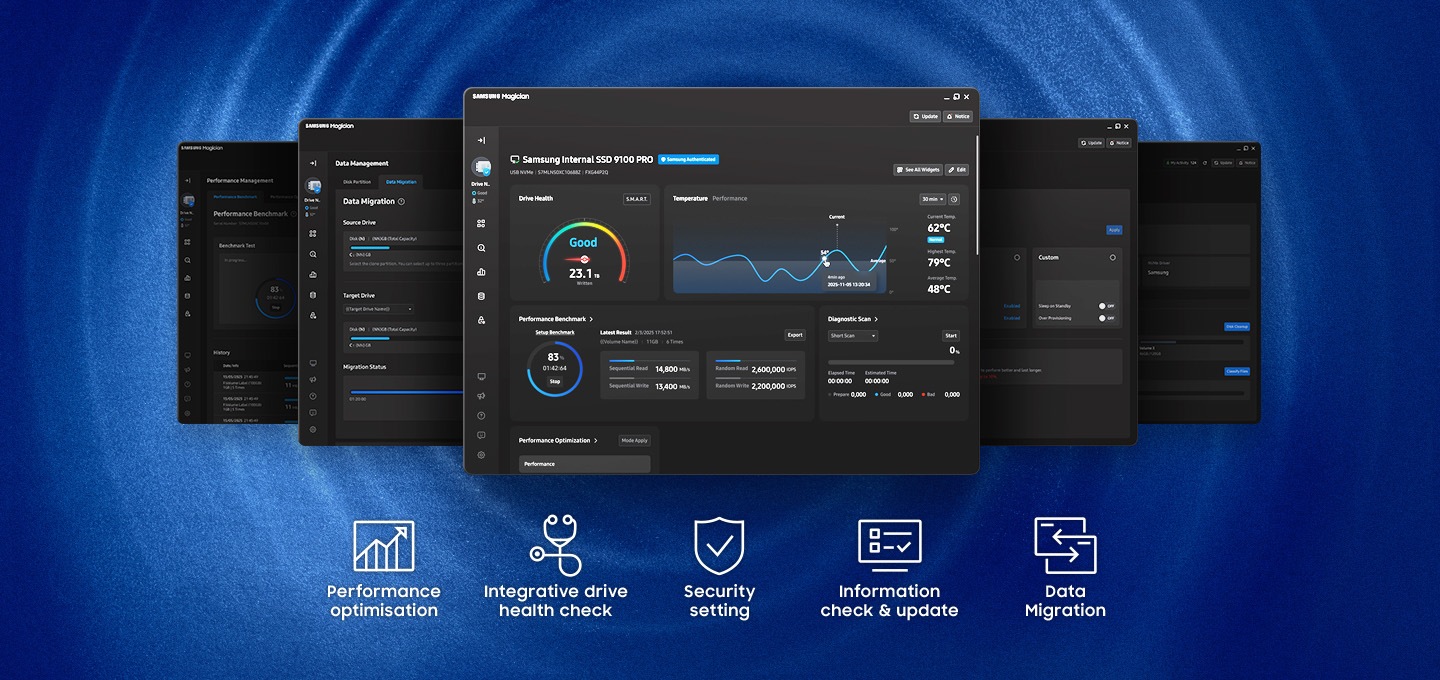

Samsung Magician software
Run your SSD your way with Samsung Magician software—a suite of simple tools to maintain high SSD performance. Transfer data quickly and safely, track drive health, and get the latest firmware updates.5
Choose the sure thing
We call them files and folders — but they’re really the moments you can’t lose, from the plays you cherish to the work you’ve poured yourself into.
When you've got everything to lose, choose the sure thing - trusted performance, solid protection, and the peace of mind that stays with every moment. Choose Samsung SSD.
