| Specification | Details |
|---|---|
| Overview | |
| Application | Client PCs |
| Interface | PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0 |
| Dimensions | Max. 80.15 × 22.15 × 2.38 mm |
| Weight | Max. 9.0g |
| Sequential Read | Up to 7,150MB/s |
| Sequential Write | Up to 6,300MB/s |
| Warranty | 5-Year Limited Warranty or 600TBW Limited Warranty |
| General Feature | |
| Application | Client PCs |
| Rated Capacity | 1,000GB |
| Capacity Note | 1GB = 1 billion bytes by IDEMA. Actual usable capacity may be less due to formatting, partitioning, operating system, applications or otherwise. |
| Form Factor | M.2 2280 |
| Interface | PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0 |
| Dimensions | Max. 80.15 × 22.15 × 2.38 mm |
| Weight | Max. 9.0g |
| Storage Memory | Samsung V-NAND TLC |
| Controller | Samsung in-house Controller |
| Cache Memory | HMB, Host Memory Buffer |
| Special Feature | |
| TRIM Support | Supported |
| S.M.A.R.T Support | Supported |
| Garbage Collection | Auto Garbage Collection Algorithm |
| Encryption Support | AES 256-bit Encryption, TCG/Opal, IEEE1667 encrypted drive |
| WWN Support | Not supported |
| Device Sleep Mode Support | Yes |
| Performance | |
| Sequential Read | Up to 7,150MB/s |
| Sequential Write | Up to 6,300MB/s |
| Random Read, 4KB QD32 | Up to 850,000 IOPS |
| Random Write, 4KB QD32 | Up to 1,350,000 IOPS |
| Performance Note | Performance may vary based on system hardware and configuration. |
| Environment | |
| Average Power Consumption | Read: 4.3W; Write: 4.2W |
| Idle Power Consumption | Typical 60mW |
| Device Sleep Power Consumption | Typical 5mW |
| Power Consumption Note | Actual power consumption may vary depending on system hardware and configuration. |
| Allowable Voltage | 3.3V ± 5% |
| Reliability | 1.5 million hours MTBF |
| Operating Temperature | 0°C to 70°C |
| Shock Resistance | 1,500G, 0.5ms half sine |
| Accessories | |
| Installation Kit | Not available |
| Software | |
| Management Software | Samsung Magician Software for SSD management |
| Warranty | |
| Warranty | 5-Year Limited Warranty or 600TBW Limited Warranty |
Features
Upgrade everyday performance
Top 3 features
Performance
Up to 7,250MB/s of sequential read speed, 45% faster speed than the 990 EVO.
Power efficiency
Power efficiency enhanced by 73% for more MB/s per watt, while maintaining performance and thermal control.

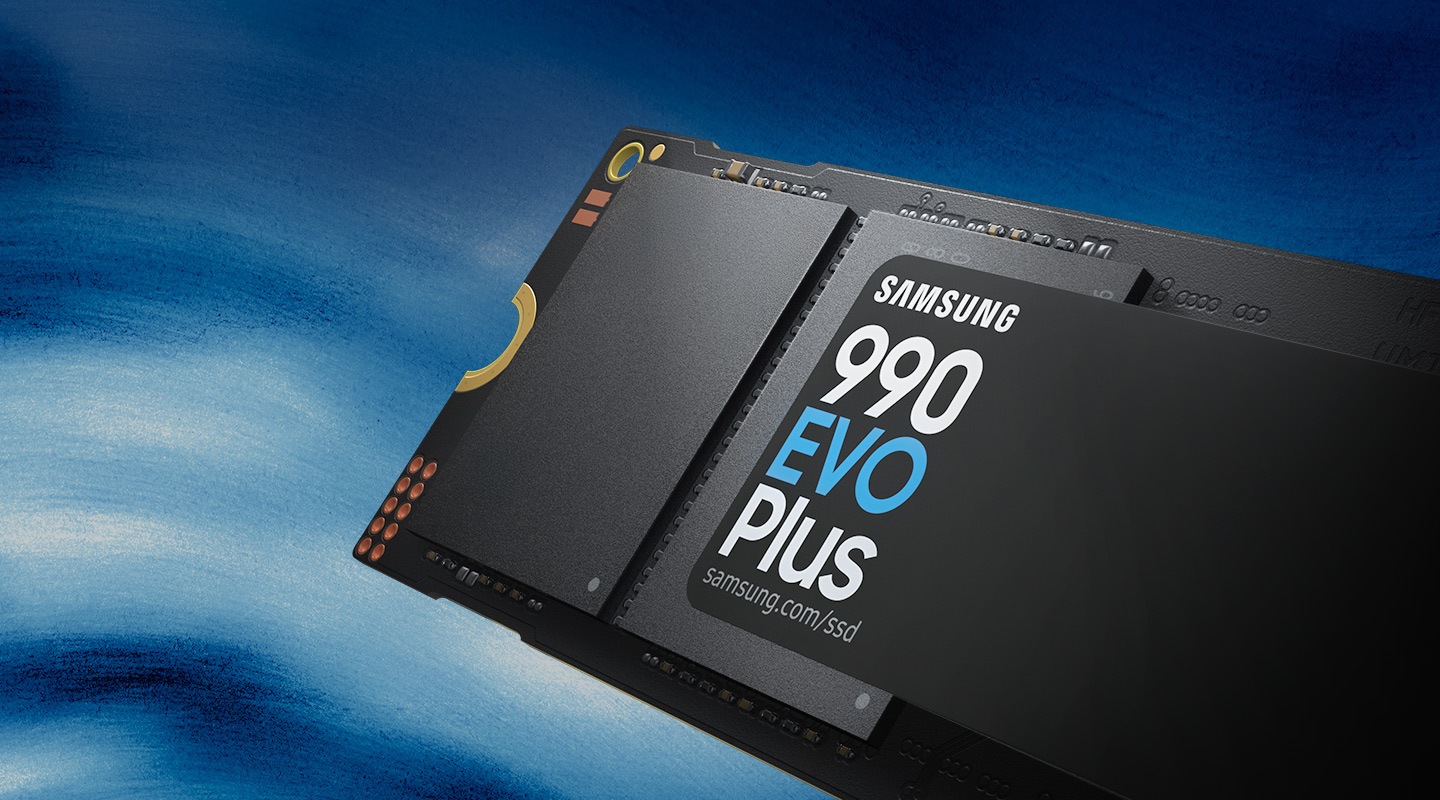

Spectacular speed everyday
Blast through tasks faster. 990 EVO Plus with the latest NAND offers boosted sequential read/write speeds up to 7,250/6,300MB/s. Huge files, instant transfer.1
Cool power through your day
Optimised efficiency, extended performance. The nickel-coated controller increases MB/s per Watt by 73%, achieving the same power level and thermal control with less power consumption. Stay focused on work or play with no overheating or battery life worries.
Extra space. Extra speed.
Harness the full power of your drive with enhanced Intelligent TurboWrite 2.0. Process massive data faster and breeze through heavy graphics with an enlarged TurboWrite region, now available in 4TB capacity.

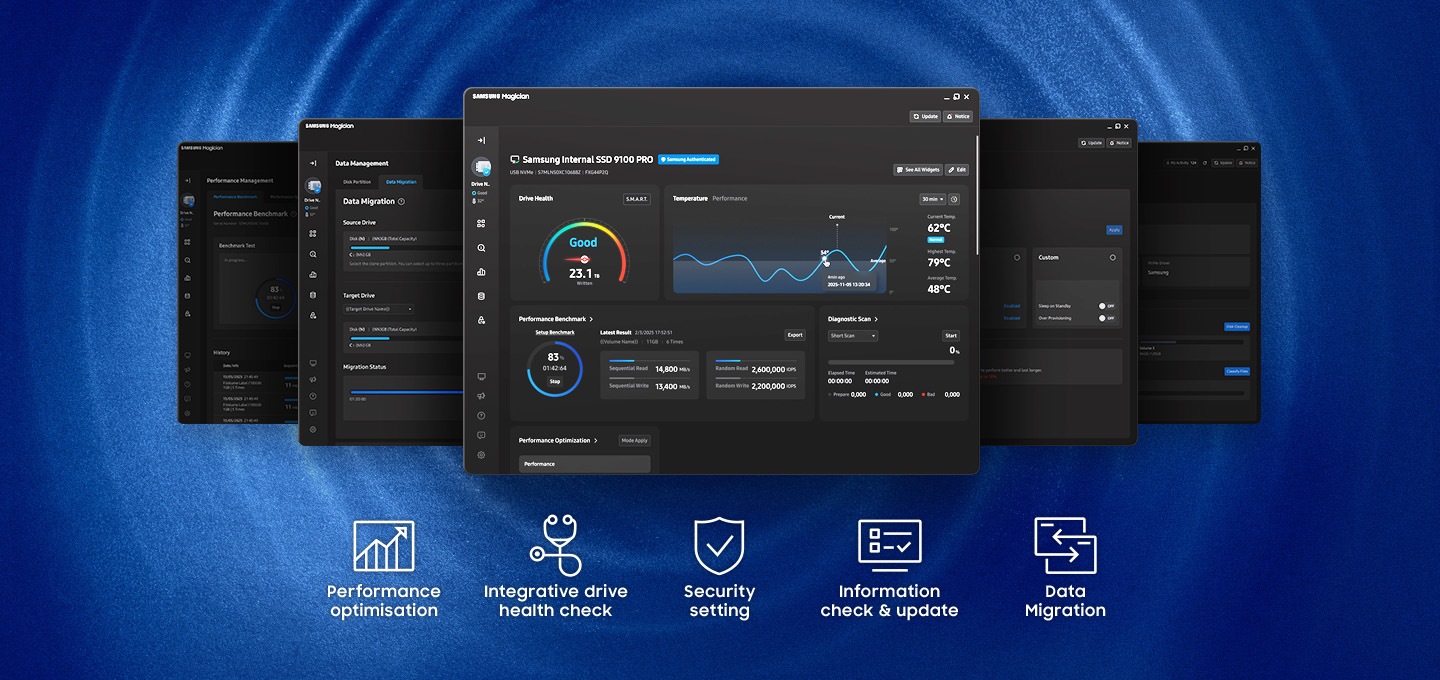

Samsung Magician software
Run your SSD your way with Samsung Magician software—a suite of simple tools to maintain high SSD performance. Transfer data quickly and safely, track drive health, and get the latest firmware updates.2
Choose the sure thing
We call them files and folders — but they’re really the moments you can’t lose, from the plays you cherish to the work you’ve poured yourself into.
When you've got everything to lose, choose the sure thing - trusted performance, solid protection, and the peace of mind that stays with every moment. Choose Samsung SSD.
