| Specification | Details |
|---|---|
| Overview | |
| Transfer Speed | Sequential Read: up to 1,050MB/s; Sequential Write: up to 1,000MB/s |
| Transfer Speed Note | Performance may vary depending on system environment, even with USB 3.2 interface supporting UASP |
| Interface | USB 3.2 Gen 2, 10Gbps |
| General Feature | |
| Rated Capacity | 1TB |
| Capacity Note | 1GB = 1,000,000,000 bytes; 1TB = 1,000,000,000,000 bytes |
| Interface | USB 3.2 Gen 2, 10Gbps |
| Dimensions | 59 × 88 × 13 mm |
| Weight | 98g |
| Weight Note | Exact product weight may vary by capacity |
| Transfer Speed | Sequential Read: up to 1,050MB/s; Sequential Write: up to 1,000MB/s |
| UASP Mode | Supported |
| Encryption | AES 256-bit hardware encryption |
| Security | Samsung Portable SSD Software 1.0, Samsung Magician Software |
| Certification | CE, BSMI, KC, VCCI, C-tick, FCC, IC, UL, TUV, CB, EAC, UKCA, BIS |
| RoHS Compliance | RoHS2 |
| Warranty | Limited 3-Year Warranty |
| Warranty Note | Full warranty statement is available on Samsung SSD and Samsung Support website |
Features
Rugged durability
Supremely tough, fast, and compact. The new T7 Shield gives you superior performance on the go, even in challenging environmental conditions. Super-speed inside with durable protection outside keeps work flowing, ready to hand off to a client or for hands-on editing at home.
Simulated image. This device has a IP65 rating based on internal testing conducted under controlled conditions. Water and dust resistance capabilities may vary depending on the actual environmental conditions. Damage caused by liquid and dust are not covered under warranty. IPX5 Test condition: Device was exposed to fresh water projected from a nozzle (Φ6.3mm) 3 metres away at 12.5 l/min for 3 minutes. The device should not be used if water is present in the connecting port. IP6X Test condition: Device was exposed to 2kg/m³ of active dust with a pressure under 2kPa for 8 hours in a vacuum chamber.
Create at full speed
Transfer huge files instantly. USB 3.2 Gen 2 and PCIe® NVMe™ achieve soaring sequential read/write speeds of 1,050/1,000MB/s for lag-free editing direct from the drive. The high-tech rubber exterior with Dynamic Thermal Guard controls heat to maintain steady performance for even giant projects.
Performance may vary depending on host configuration. To reach maximum read/write speeds of up to 1,050/1,000MB/s, respectively, the host device and connection cables must support USB 3.2 Gen2 and the UASP mode must be enabled. Test system configuration: ASUS Z270 ROG MAXIMUS IX HERO (USB 3.2 Gen2 Type-C), Intel(R) Core(TM) i7-7700K CPU @ 4.20GHz, OS- Windows 10 19H2
Mighty tough
Ready for the rough and tumble. Shoot on location and wander the wild, while feeling confident your data is securely resistant against water and dust with an IP65 rating. The rugged design and advanced outer elastomer add extra durability to even endure a 3-metre drop.
Simulated image. T7 Shield is rated as IP65 based on internal testing conducted under controlled conditions. Water, dust and drop resistance capabilities may vary depending on the actual environmental conditions. Damage caused by liquid, dust and drop are not covered under warranty. IPX5 Test condition: Device was exposed to fresh water projected from a nozzle (Φ6.3mm) 3 metres away at 12.5 l/min for 3 minutes. The device should not be used if water is present in the connecting port. IP6X Test condition: Device was exposed to 2kg/m³ of active dust with a pressure under 2kPa for 8 hours in a vacuum chamber. Drop test condition: Device was dropped free-fall to a metal plate from 3-metre height.
For your life's devices
Effortlessly connect to the tech you use throughout the day: Macs, PCs, Android devices, gaming consoles, and more. Add portable convenience to every part of your life.
Compatibility with T7 Shield may vary depending on the host device. Some operating systems may require T7 Shield reformatting. T7 Shield is compatible with USB 3.0 and USB 2.0. The T7 Shield complies with official USB power specifications. If the host device does not comply with those specifications, there may be compatibility issues and/or reduced performance.
Go big with style
Take your pick. 1TB, 2TB or 4TB gives you colossal space in sleek colourways of blue, beige, or black. The stylish rubberised grip prevents slips so it stays in your hands. Bring everything with you, and look great doing it.
1GB=1,000,000,000 bytes, 1TB=1,000,000,000,000 bytes. Lower capacity may be demonstrated by your computer due to use of a different measurement standard. The actual product weight and size may vary depending on the product's capacity and measurement method. T7 Shield 4TB is only available in black.
Management software
Set your password and get the latest firmware updates with Samsung portable SSD software available in PCs, Macs, Android smartphones and tablets. You can also check your drive's health, boost performance and protect data with Samsung Magician Software.
Software requires Windows 7, Mac OS X 10.10, Android 5.1(Lollipop), or higher. Older versions of the Windows, Mac, and Android operating systems may not be supported. Firmware update requires use of PC or Mac and access to internet connection. Android app available on Google Play. Samsung Magician Software only available in Windows.
World's No.1 Flash Memory
Experience the superior performance and reliability that you can only get from the world's number one brand for flash memory since 2003. All firmware and components including Samsung's world-renowned DRAM and NAND are produced in-house allowing end-to-end integration for quality you can trust.
Source: 2003-Q4.2021 OMDIA data: NAND suppliers' revenue market share.

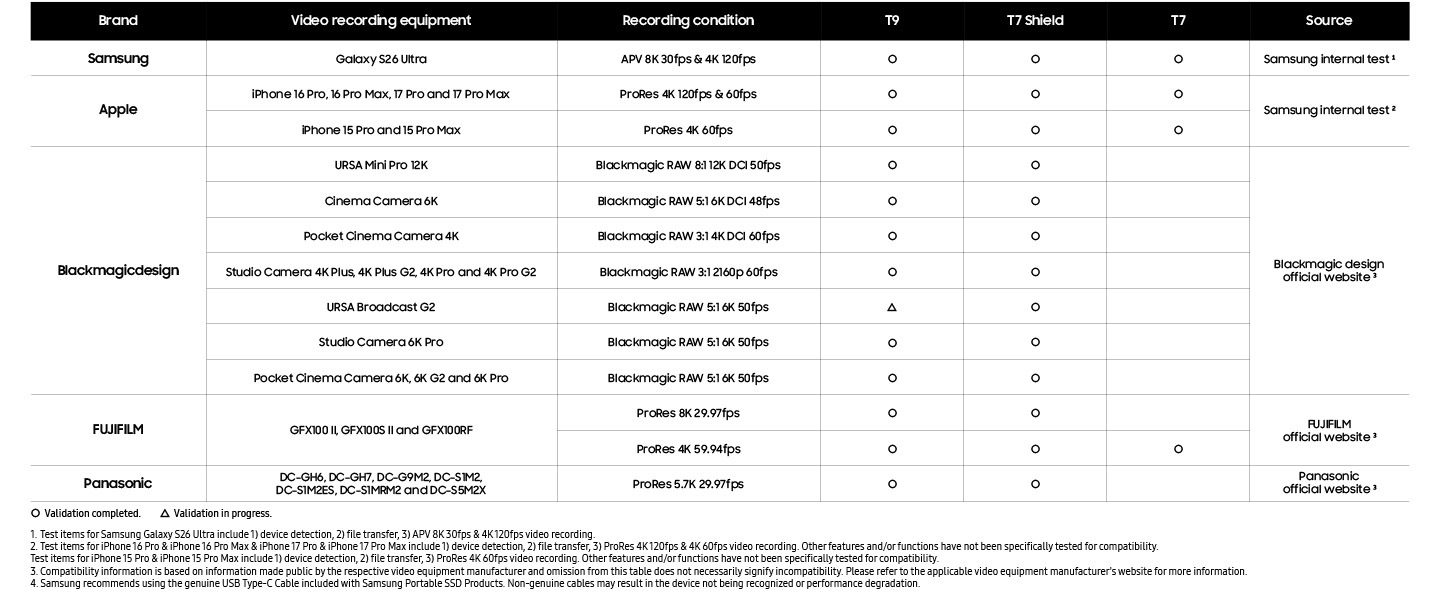

Compatibility Table
